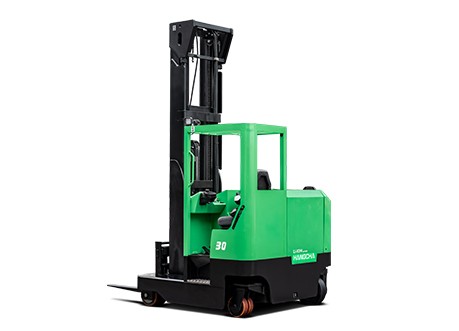

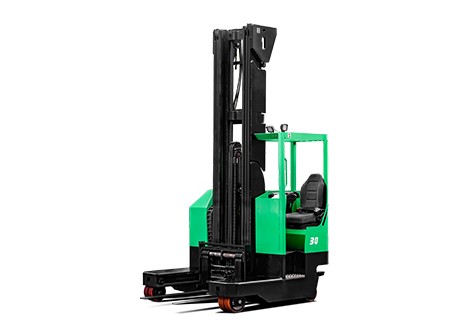

X Series Electric 4-way Reach Truck

4,000-6,000lbs lifting capacity

The 2-3-ton multi-lateral electric forklift can be driven in the modes of straight movement, sideways movement and 360° rotation in situ,etc. It is suitable for places with the need of handling and stacking large and long materials, such as pipes, sheets and wires, and can meet the needs of customers for operations in narrow aisles and high stacking heights

FEATURES

/ The narrow aisles required for handling long stacking materials maximize the space availability of your warehouses.
/ A high-power oil pump motor is used. The large-displacement silent gear pumps improve the lifting and descending speed of the fork, as well as its operating efficiency.
/ The four-pivot articulated drive and steering axles allow higher passing ability, thus suitable for indoor and outdoor operation.
/ The brake kinetic energy regeneration system enables the battery to support longer operating hours after being charged once.

/ The ergonomically arranged joystick, instruments and switches make operations more comfortable and flexible.
/ The suspended cab allows more secure and comfortable operation.
/ Electric steering makes steering more gentle and comfortable, and steering mode switching is easier and faster.
/ A new integrated instrument cluster has complete functions and clear readings.

/ Articulated drive and steering axles and suspended cab improve operating comfort.
/ With efficient and precise adjustment performance, the newly equipped AC control system supports longer operating hours after being charged once.
/ The integrated mechanical, electrical and hydraulic control realizes the step less speed regulation of the vehicle driving and the fork movement, more precisely and stably.

The brushless AC motor is maintenance-free and significantly reduces the operating cost.

Electro-hydraulic proportional fingertip control system allows more accurate and smooth operation of the fork.
Electro-hydraulic proportional fingertip control system allows more accurate and smooth operation of the fork.
The joystick can be adjusted from top to bottom and from front to rear according to the operator’s using habits.
The joystick can be adjusted from top to bottom and from front to rear according to the operator’s using habits.
The battery removed from a side of the vehicle enables easy repair and maintenance of the battery.
The battery removed from a side of the vehicle enables easy repair and maintenance of the battery.
The electronically controlled electrical components are placed together and highly integrated.
The electronically controlled electrical components are placed together and highly integrated.
The safety pedals eliminate the safety hazard arising from the operator’s incorrect operations.
The safety pedals eliminate the safety hazard arising from the operator’s incorrect operations.
The front and rear wheel braking systems that allow large braking torque are suitable for indoor and outdoor slippery roads to let the operator drive more safely.
The front and rear wheel braking systems that allow large braking torque are suitable for indoor and outdoor slippery roads to let the operator drive more safely.

OPTIONS

- See the Configuration Table of the Mast
- Non-standard series fork
- Various attachments
- Common alarm lamp
- Acoustic and optical alarm lamp

- LED rear lamp
- Blue lamp
- Straight projection lamp
- Reversing radar
- Fire extinguisher

- Speed limit alarm device
- Electric fan
- Left and right rearview mirrors
- Fully-suspended seat
- CE standard
