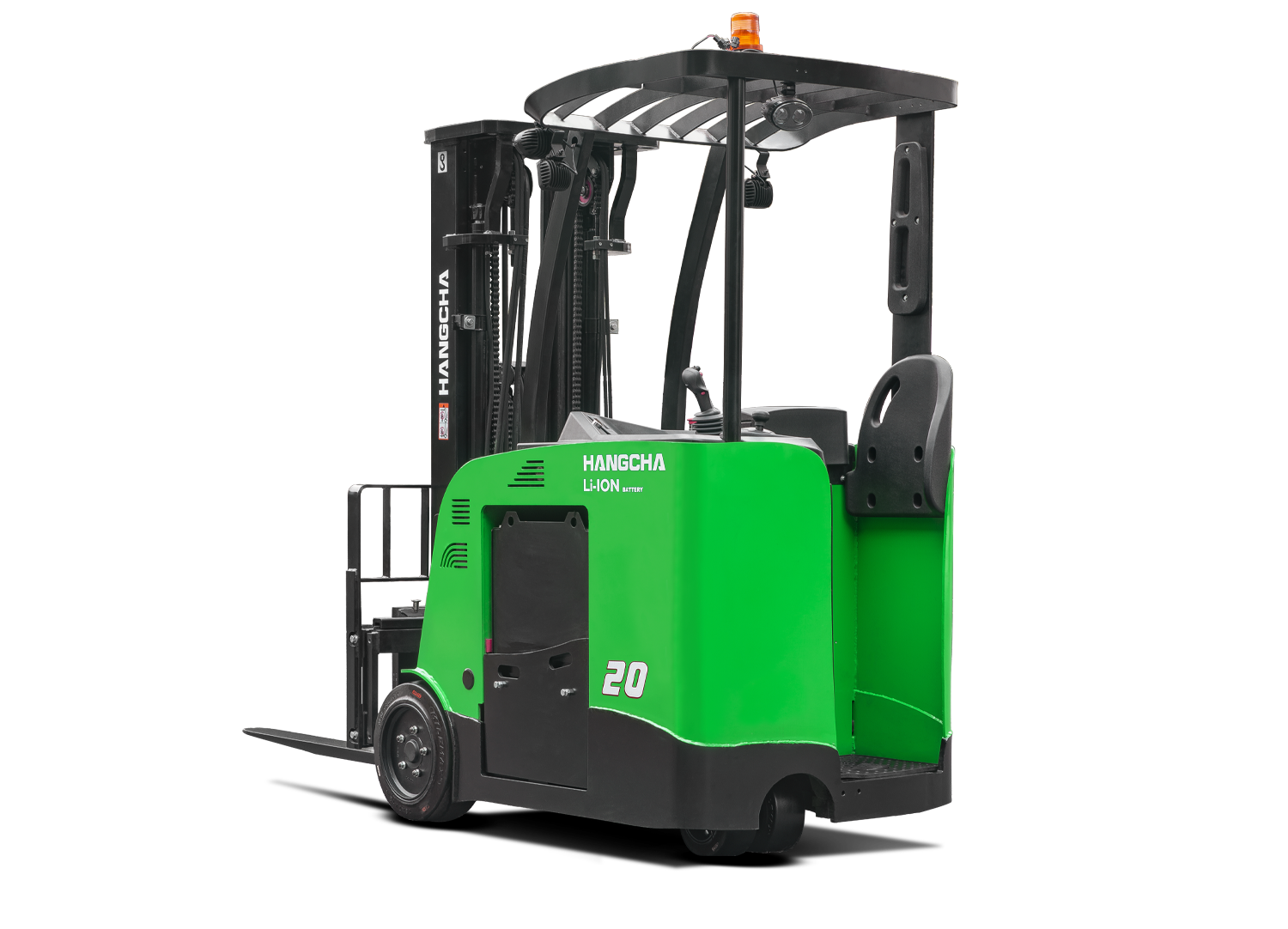

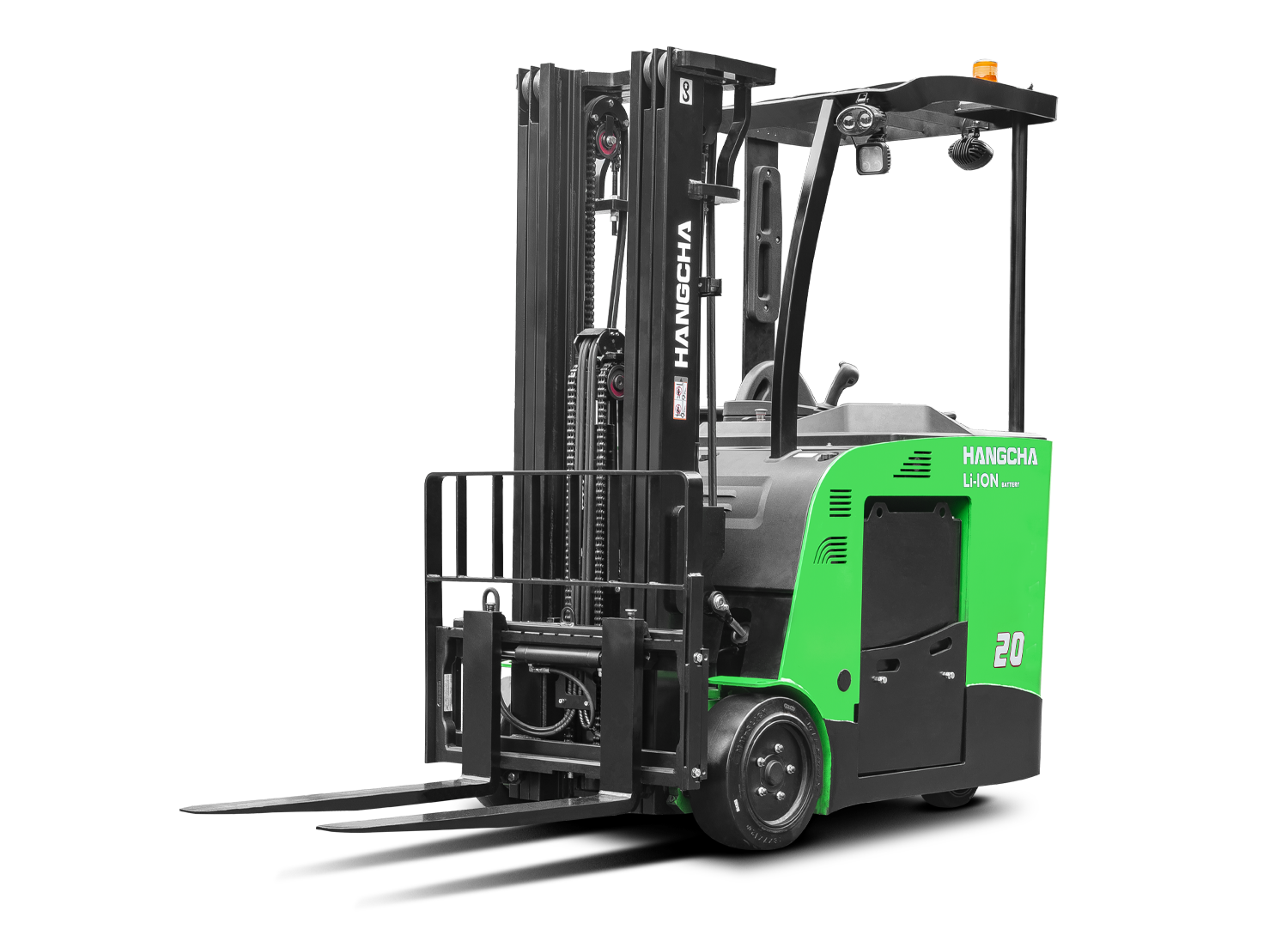

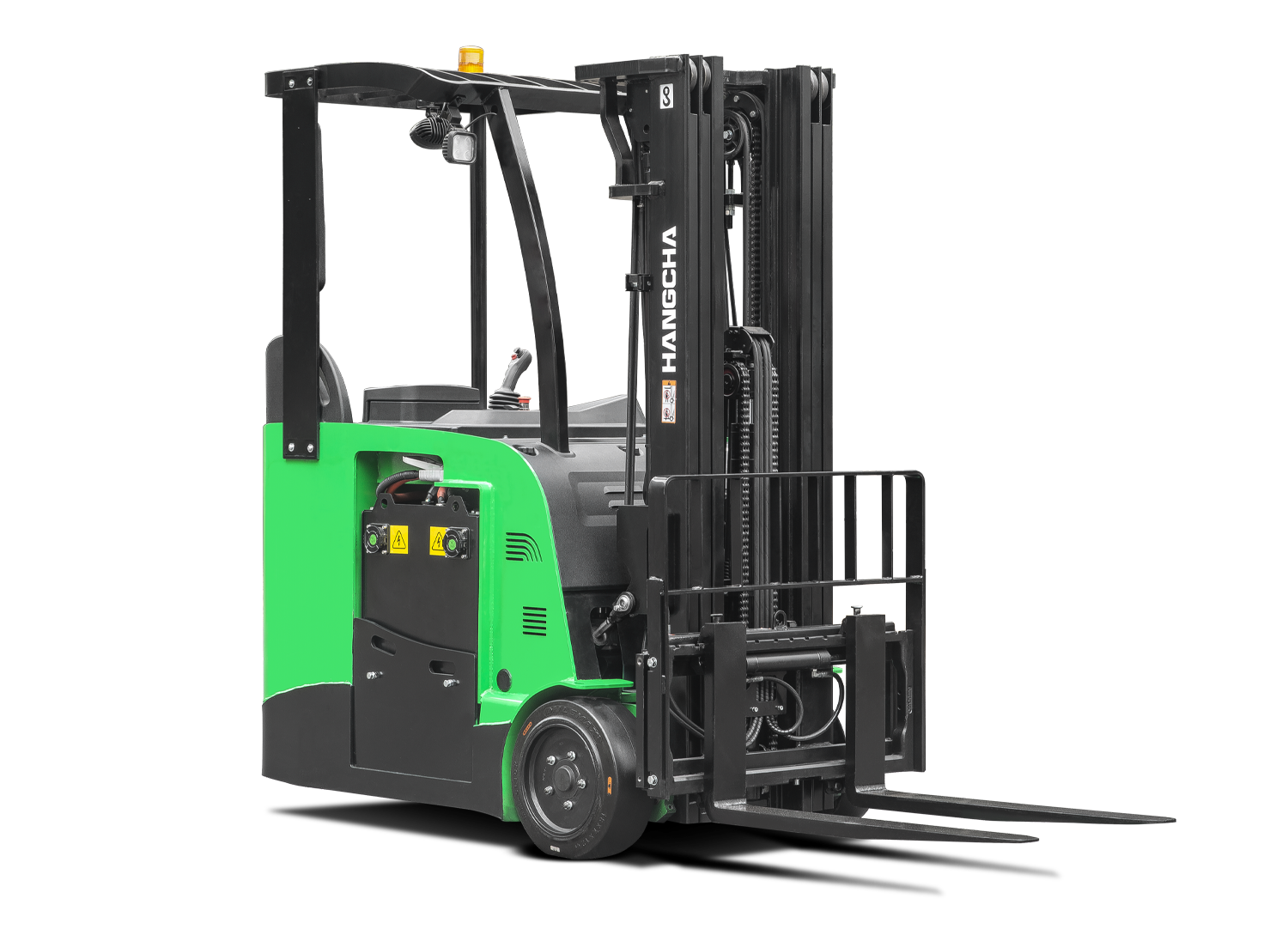

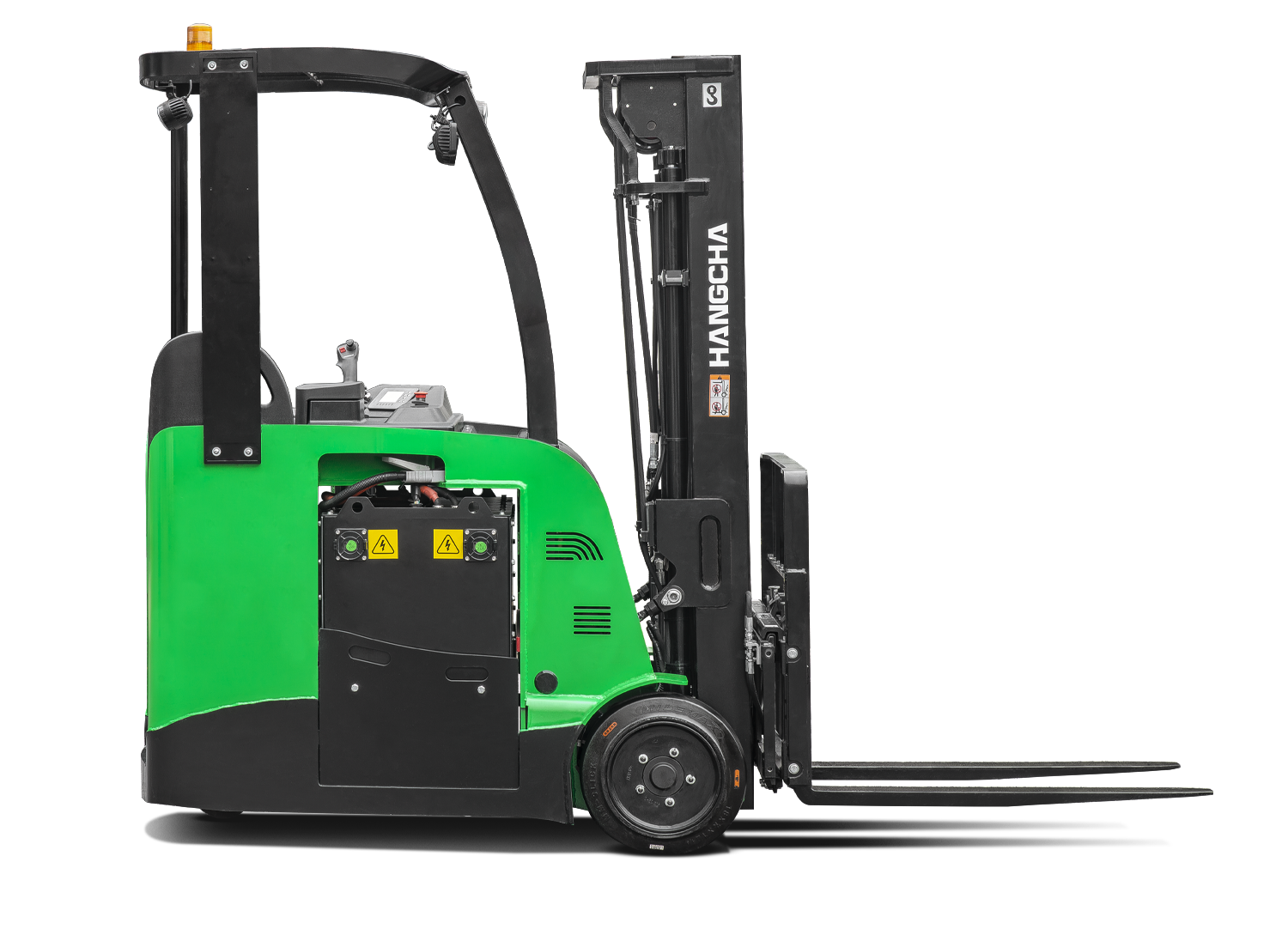

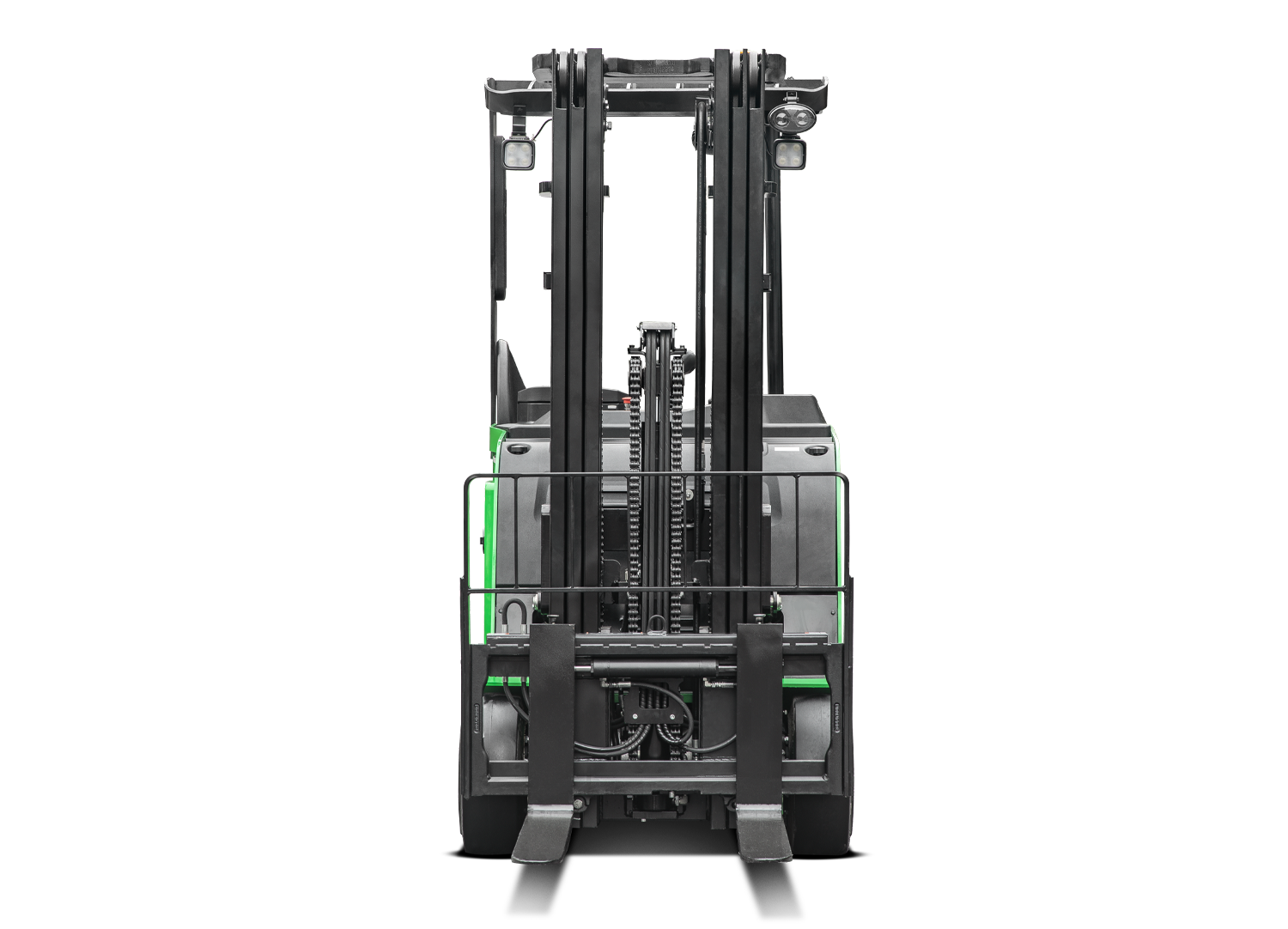

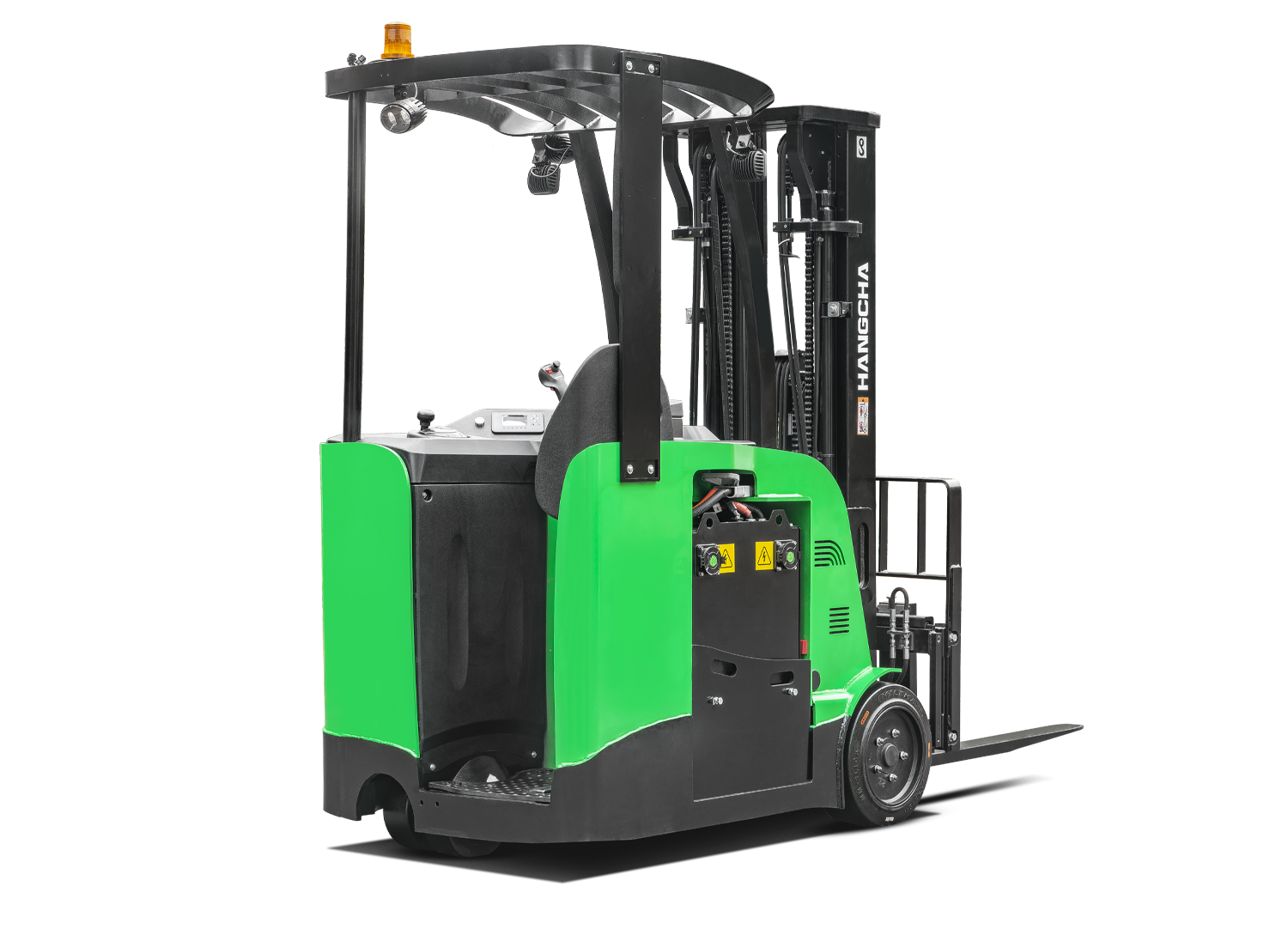

The A Series 3-Wheel Stand-Up Counterbalanced Lift Truck is designed to stack and retrieve goods efficiently in narrow aisles and at high lift heights while still maintaining a lifting capacity of up to 5,000lbs. The exterior of this forklift is powder-coated in a durable, easy to see, green finish designating it as lithium-ion powered.

1. The user operates this forklift while standing in a side stance.
2. The step is low for conveniently getting on and off the forklift.
3. An anti-fatigue floor mat and generous padding for knees, hips, and arms keep operators comfortable over long shifts.
4. The spacious operator compartment provides a comfortable work environment for the operator.

1. Thanks to the advanced front dual-drive AC motor, the traveling performance, maneuverability, and operating efficiency are greatly improved.
2. Hangcha’s AC hydraulic system provides smooth load handling and precise load placements.
3. The electronic proportional multi-way valve reduces energy consumption.
4. Electric Power Steering provides precise steering control with minimal effort. It also does not encroach into the operator compartment.

1. Cornering speed control automatically slows the forklift’s travel speed while turning to help prevent damage to loads.
2. Operation is easy thanks to the foot-raising brake pedal.
3. The electronic parking brake greatly improves the safety of the truck and the operator.
4. With the pedal sensing system, the truck can be driven only if the operator stands on the pedal. If the operator takes their foot off the pedal, active braking is initiated to prevent an accident.

1. The vehicle’s frame is robust and reliable thanks to its high-strength steel frame structure.
2. All of the forklift’s wires and cables are protected. This greatly improves the reliability of the electrical system.
3. Switches, connectors, instruments, and other key parts are all high-quality products with excellent performance and quality.

1. Integrated Battery Management System (BMS) continually monitors energy management and ensures reliable operation.
2. HANGCHA provides these Lithium Iron Phosphate (LiFePO4 ) battery packs with up to a 10 year or 20,000 hour warranty.
3. See warranty certificate for specific warranty information on the Lithium Iron Phosphate battery packs.
