XH Series High Voltage Lithium-ion Pneumatic Forklift

4,000-75,000lbs lifting capacity

FEATURES

/ With the inherited exterior design of the dedicated XC lithium battery forklift and a smooth and sturdy profile, the whole vehicle is impact, elegant, stylish, sturdy and powerful.

/ Equipped with a lock, the hood designed to be back-flipped open to and facilitate charging, liquid replenishment and maintenance.
/ The water tank lid can be removed quickly and easily without a tool to enable a large operating area for cleaning and maintenance.

/ The standard battery with superfast charging technology needs only 1.0h(6.0-7.0t)/1.5h(8.0-10t) to charge fully;
/ Optional slow-charge charger (2h(6.0-7.0t)/3h(8.0-10t) to charge fully), cost-effective and economical.

/ The wide-view mast with optimized design is unlikely to obstruct the operator’s line of sight. The enlarged opening size of the fork carriage enables a wider view, a large operation space, and excellent ergonomic design.
/ The multifunctional color-screen instruments are designed to have graphical interfaces and display data clearly. Three speed gears are provided to adapt to different operating environments. The interfaces can be switched to be shown in Chinese and English to meet the needs of customers at home and abroad.
/ The enlarged brake pedal and appropriate regenerative braking function can effectively reduce the driver’s fatigue.

/ Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems, equipped with a high-speed ratio gearbox with a driving speed, upslope degree and acceleration performance rival that of internal combustion vehicles, and the environmental performance better than that of internal combustion vehicles.
/ The vehicle uses an overall controller, and the drive system and operating system are assembled with motors electronically controlled, to form a highly independent light, efficient, and intelligent drive system.
/ The vehicle’s 307V high-voltage platform is equipped with a long-lasting large-capacity lithium battery, which is powerful, efficient and energy-saving, adopts a super-fast charging technology that enables a short charging time.
/ A water-cooling system with a good heat dissipation effect is used on a new energy forklift for the first time, so that the forklift can absolutely carry out long-time and high-intensity operations as internal combustion forklifts.

STANDARD FEATURES

Multi-function color-screen combination instrument
Large integral rubber pedal pads
Standard duplex mast, fork, fork carriage and load backrest
Stamped iron hood, stamped iron side plates
Stamped stainless steel boarding step
The gas spring of the hood with a touch-proof mechanism
Handbrake with a touch-proof mechanism
Integrated fuse box
Charging muzzle meeting national standards
Reverse buzzer
Lithium battery pack

Low temperature electric heating systems
Permanent magnet AC traction motor controller
Permanent magnet AC oil pump motor controller
DC-DC power supply
VCU controller
MSD maintenance switch
Emergency power off switch
Mileage display, operating time display
Load sensing steering system
Turning deceleration function

Soft landing
SPE power selection
Electronic water pump
Electronic fan
Heat dissipater
Expansion tank
Double multi-way valve
Low noise gear pump
Traction pin
LED combination headlights, LED rear combination three-color taillights

OPTIONS

Solid tire
Left and right rear-view mirrors
Reversing video
Front/rear blue lights
Rear operation lights
Lithium battery charger
Cold storage
Reverse armrest (with a horn button)
OPS system

Triple multi-way valve
Quadruple multi-way valve
Quintuple multi-way valve
Widened / heightened load backrest
Widened fork carriage
Forks of other lengths
Free duplex mast
Free triplex mast

Built-in side shifter
Accessories for other specifications
Grammer MSG531 suspended seat
Start with a PIN code or by swiping a card
Coloring solid environmentally friendly seamless tire
Fork ascending buffering
Fingertip control system
Toolbox, folder

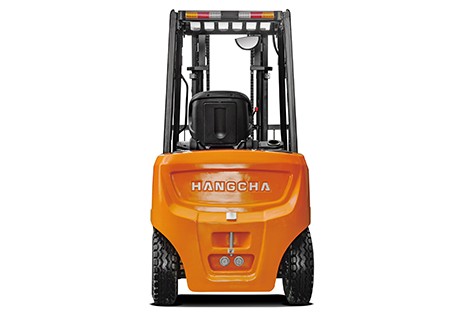

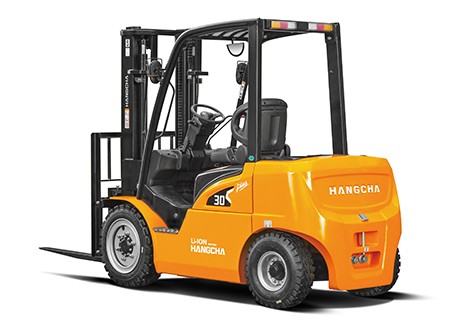

OTHER IMAGES
