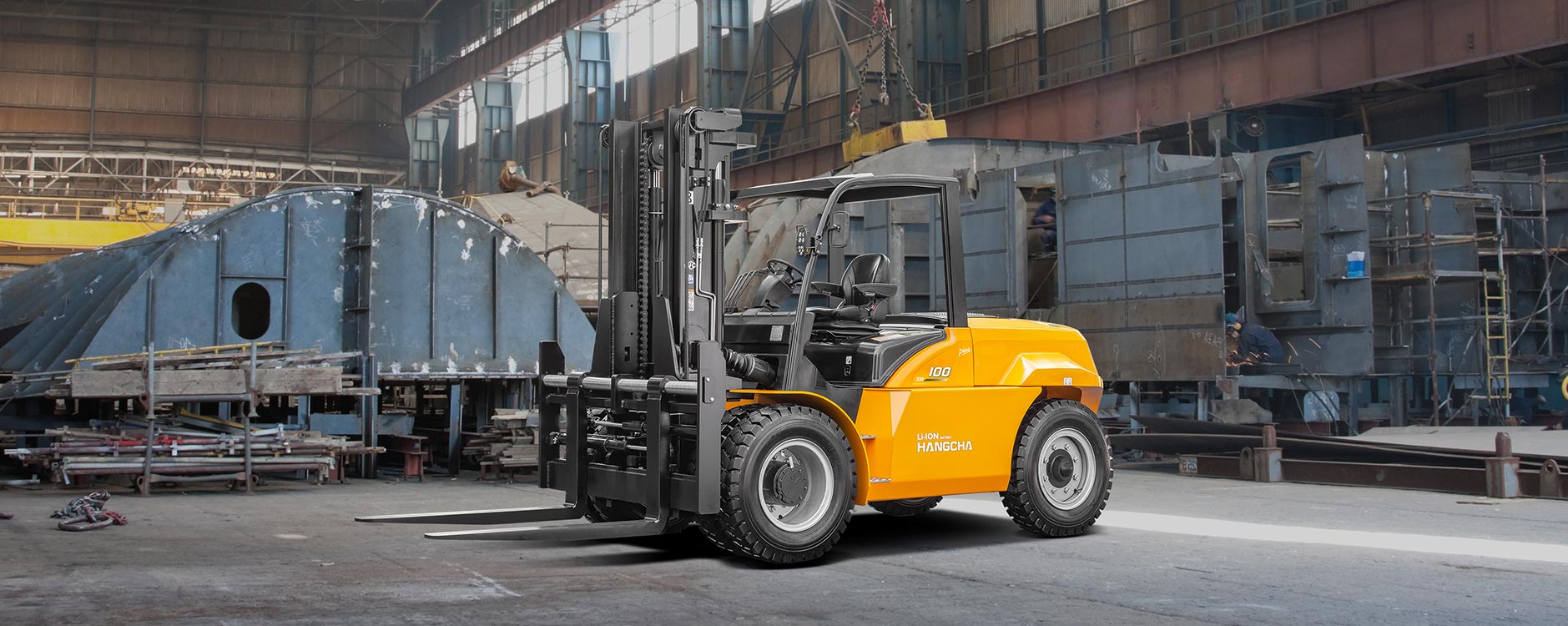

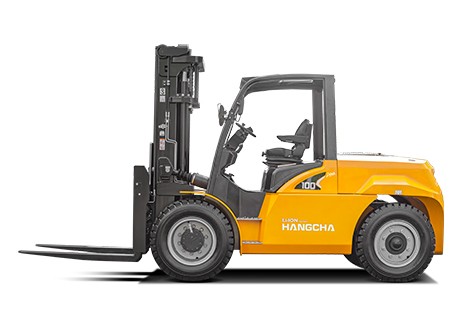

XH Series High Voltage Lithium-ion Pneumatic Forklifts are new series of high voltage lithium-ion forklifts independently developed by Hangcha Group. By applying the same technology found in automobile applications, Hangcha’s high voltage forklifts are designed to outperform similar electric and internal combustion forklifts. Hangcha Group is redefining electric forklifts’ efficiency, power, and reliability with the XH Series High Voltage Lithium-ion Forklifts.
With the inherited classic exterior design of the dedicated XC lithium battery forklift and a smooth and sturdy profile, the whole vehicle is impact, elegant, stylish and sturdy.
/ Standard large-capacity lithium battery meets long battery life requirements.
/ Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems, being energy-saving and efficient;
/ With 309V high-voltage platform, the vehicle boasts of a smaller current and very low heat loss;
/ The vehicle uses an overall controller to control the traction motor controller assembly and the driving motor controller assembly to form a highly independent, light-weighted, efficient and intelligent drive system.
/ The standard battery with superfast charging technology needs only 1.0h(6.0-7.0t)/1.5h(8.0-10t) to charge fully;
/ Optional slow-charge charger (2h(6.0-7.0t)/3h(8.0-10t) to charge fully), cost-effective and economical.
/ Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems. Equipped with a high speed ratio gearbox, the driving speed, upslope degree and acceleration performance surpass that of internal combustion vehicles.
/ It adopts the same structural design of drive axle, steering axle and tires as internal combustion forklifts, which can meet the demand of high-intensity operating conditions.
/ With regard to the series of products, a water cooling system with a good heat dissipation effect is used on a new energy forklift for the first time, so that the forklift can carry out long-time and high-intensity operations as internal combustion forklifts.
/ It meets all-weather operating conditions and is usable under severe operating conditions such as cold storage, heavy rain and waterlogged roads.
/ Equipped with a lock, charging, liquid replenishment and maintenance become convenient.
/ The water tank lid can be removed quickly and easily without a tool to enable a large operating area for cleaning and maintenance.
Multi-function color-screen combination instrument
Large integral rubber pedal pads
LED combination headlights, LED rear combination three-color taillights
Duplex wide-view mast
Stamped iron hood, stamped iron side plates
Stamped stainless steel boarding step
The gas spring of the hood with a touch-proof mechanism
Handbrake with a touch-proof mechanism
Integrated fuse box
Charging muzzle meeting national standards
Reverse buzzer
Lithium battery pack
Lithium battery pack with low temperature electric heating systems
Maintenance-free 12V lead-acid battery
Two-in-one permanent magnet AC traction motor controller
Two-in-one permanent magnet AC oil pump motor controller
Two-in-one DC-DC power supply
VCU controller
MSD maintenance switch
Emergency power off switch
Mileage display, operating time display
Load sensing steering system
Turning deceleration function
Fork descending buffering
SPE power selection
Electronic water pump
Electronic fan
Heat dissipater
Expansion tank
2nd valve (6.0-7.0t)
4th valve (8.0-10t)
Quadruple multi-way valve
Silent gear pump
Traction pin
Left and right rear view mirrors
Hangcha cloud intelligent management system
Solid tire
Reversing video
Front/rear blue lights
Rear operation lights
Dedicated lithium battery charger
Reverse armrest (with a horn button)
OPS seat sensing function
3th/4th valve (6.0-7.0t)
5th valve
Quintuple multi-way valve
Widened fork carriage
Forks of other lengths
Free duplex mast
Free triplex mast
Accessories for other specifications
Start with a PIN code or by swiping a card
Coloring solid environmentally friendly seamless tire
Toolbox, folder
Integrated fingertip control system including ergonomic armrests
